Networking

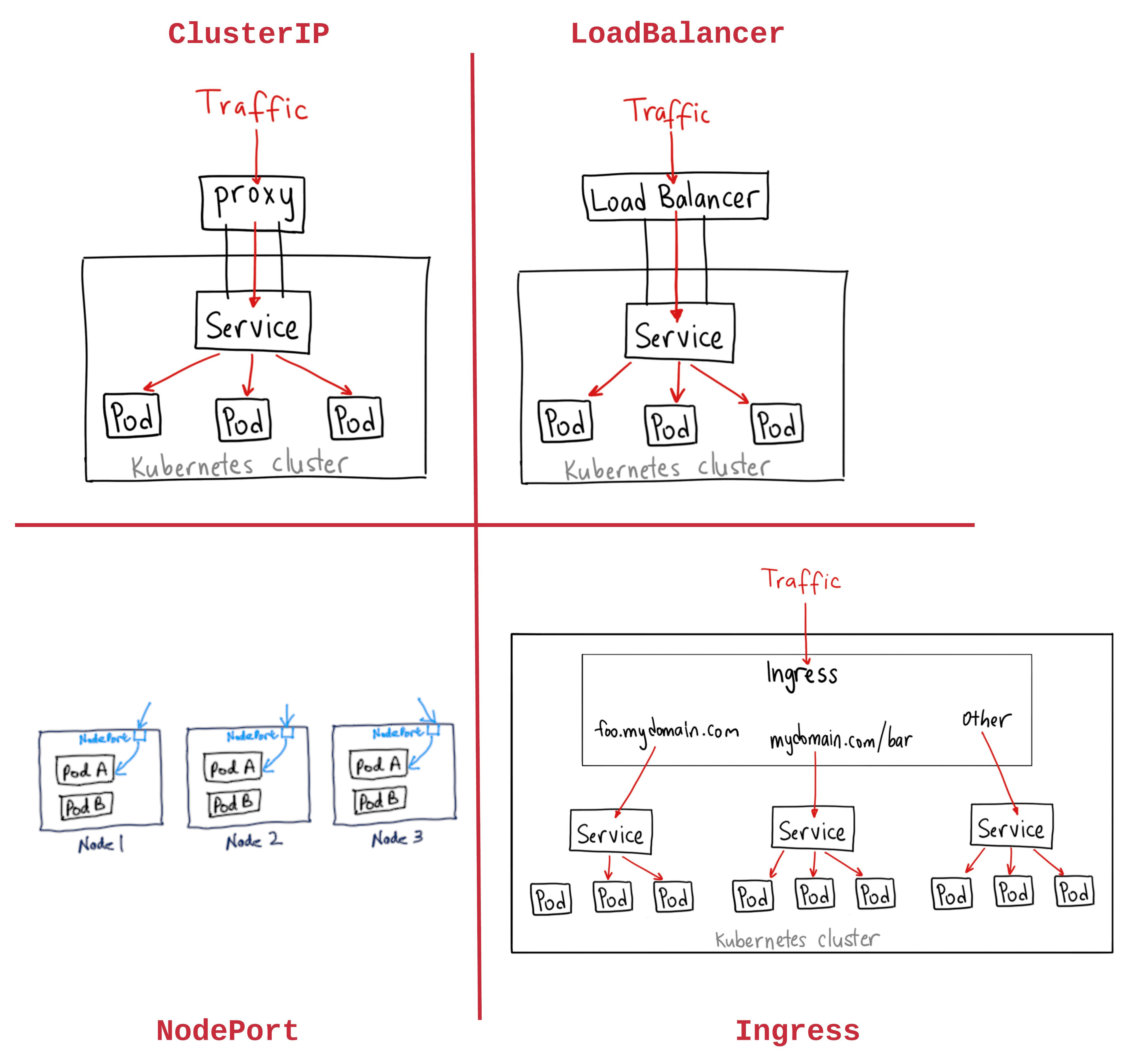

../../_images/IncomingTraffic.jpg

Ingress Types

Ref: https://kubernetes.io/docs/concepts/services-networking/ingress/#ingress-controllers

  • Single Service Ingress

  • Simple fan out

Kubernetes calls its HTTP(S) based load-balancing system Ingress as it operates at Layer 7 of the OSI stack.

Service object

A Kubernetes service object operates at Layer 4 of the OSI stack, i.e. TCP and UDP level and is hence unaware of the content of these TCP packets.

Network Policies

  • Kubernetes network policies work similar to network firewalls. With Kubernetes network policies, you specify how groups of pods are allowed to communicate with each other and other network endpoints.

  • It uses labels to select pods and defines rules to specify what traffic is allowed to the selected pods.

  • The policyTypes are ingress and / or egress. They provide whitelisted rules to explicitly allow traffic in or out of the pod from other pods and endpoints. Thus, all other traffic is blocked except for these whitelisted rules.

  • There are three kinds of selectors that can be specified for ingress and egress network types. They are:

    • podSelector: to specify which pods the ingress and / or egress refers should be applied to.

    • namespaceSelector: namespace object resource header for pod selector criteria

    • ipBlock: to specify which network these external pods may be residing on.

  • Note that are enforced the network solution implemented on the cluster. Flannel does not support network policies.

  • For examples and usage, see Network Policy yaml

Liveness Probe

The three kinds of liveness probes supported by Kubernetes are:

  • HTTP GET

  • TCP connection

  • Exec probe
